Highlights

BIT PERFECT DAC MODE

Ultra-fast diode bridge controller

Fully separate Inductive power supply

Galvanic isolations and reclocking between the USB interface and R2R ladder

Ultra-Low Phase Noise Oscillator for High Definition Audio (HD Audio)

True balanced converter (no output transformers)

Fully discrete Stellavox buffer stage

DAC direct out without buffer and capacitors

No digital and analog filters

AC - DC Stellavox mode out

Aluminium anti-resonant separate cabinet (power supply / converter)

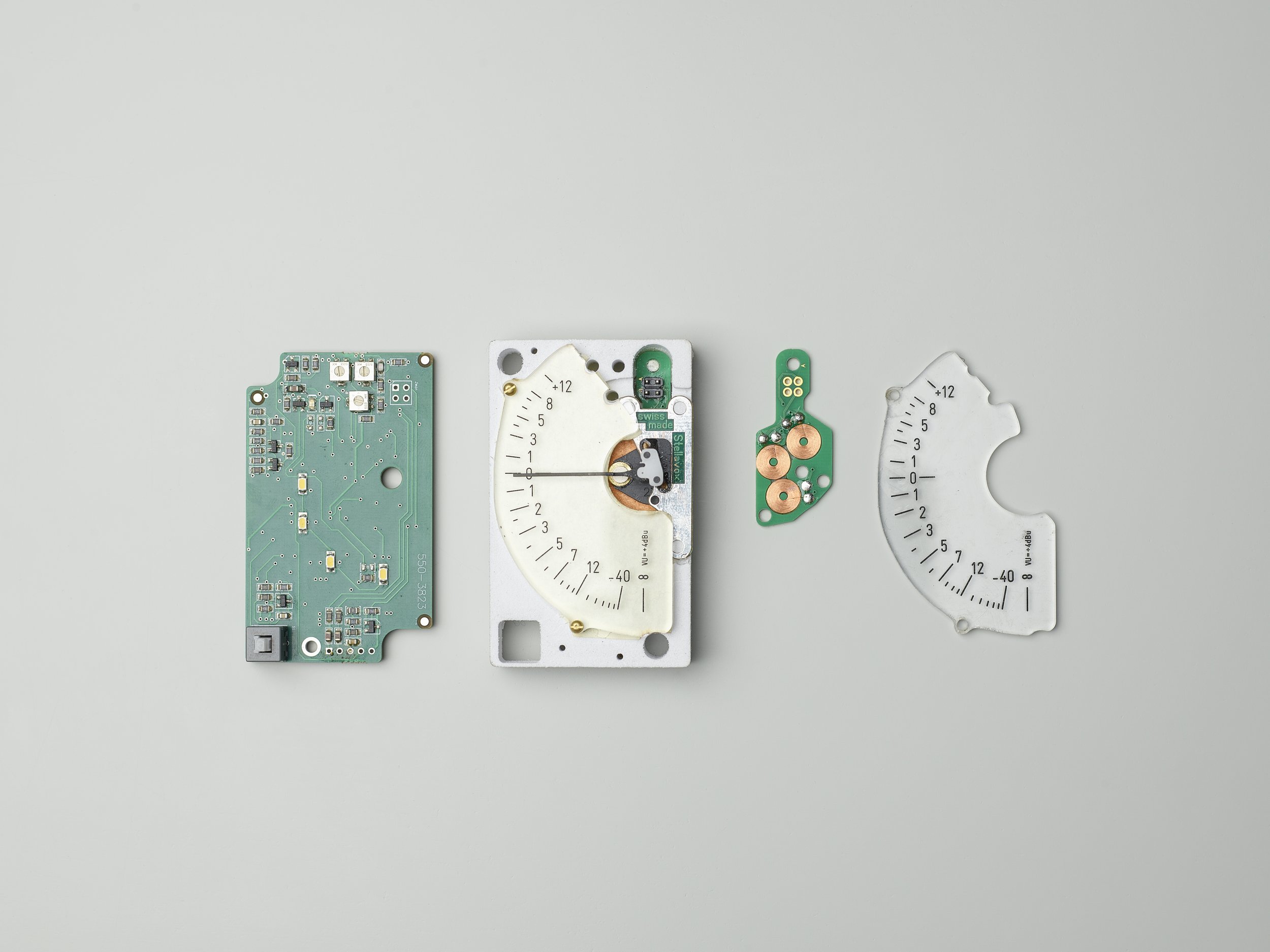

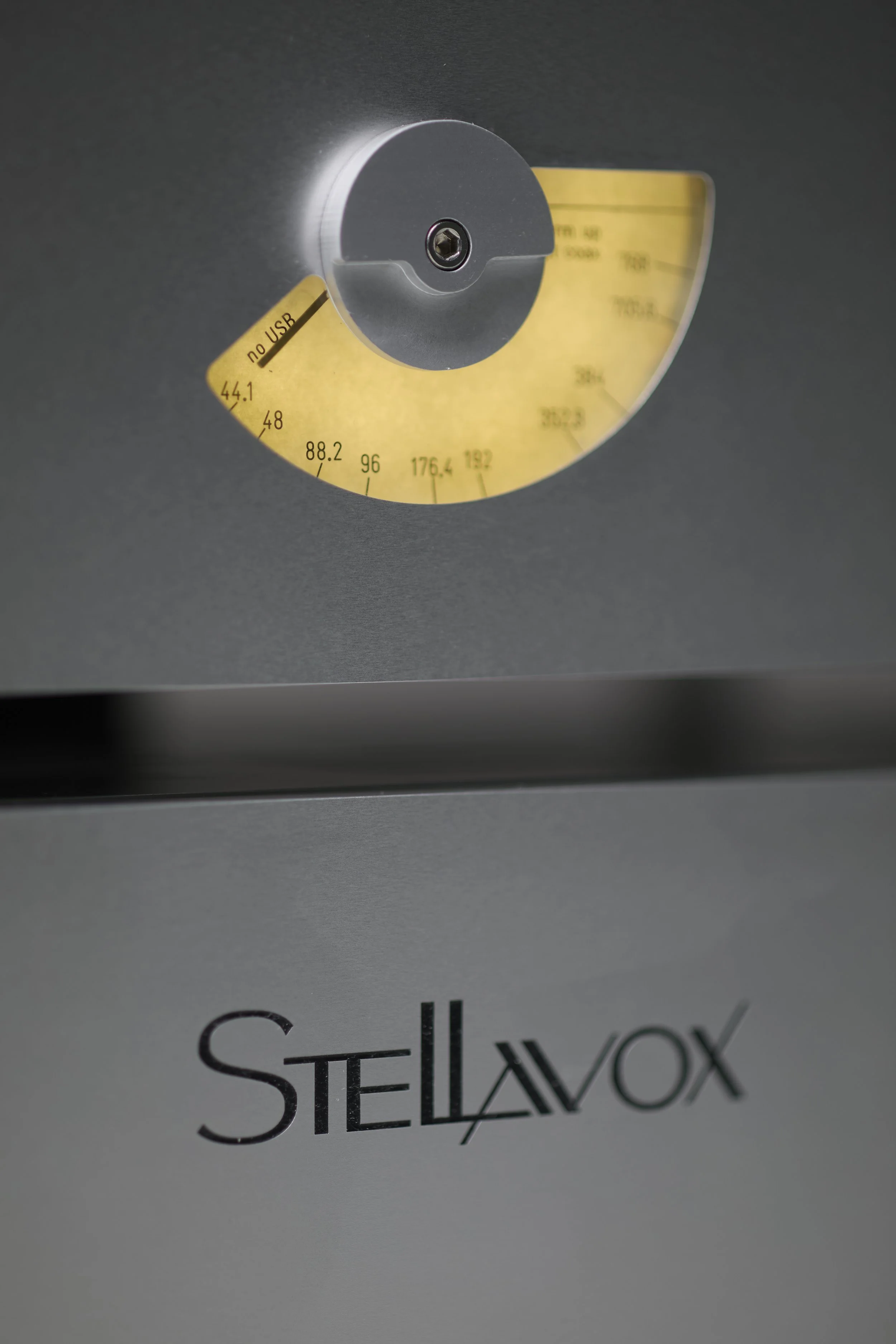

Fully analog frequency meter

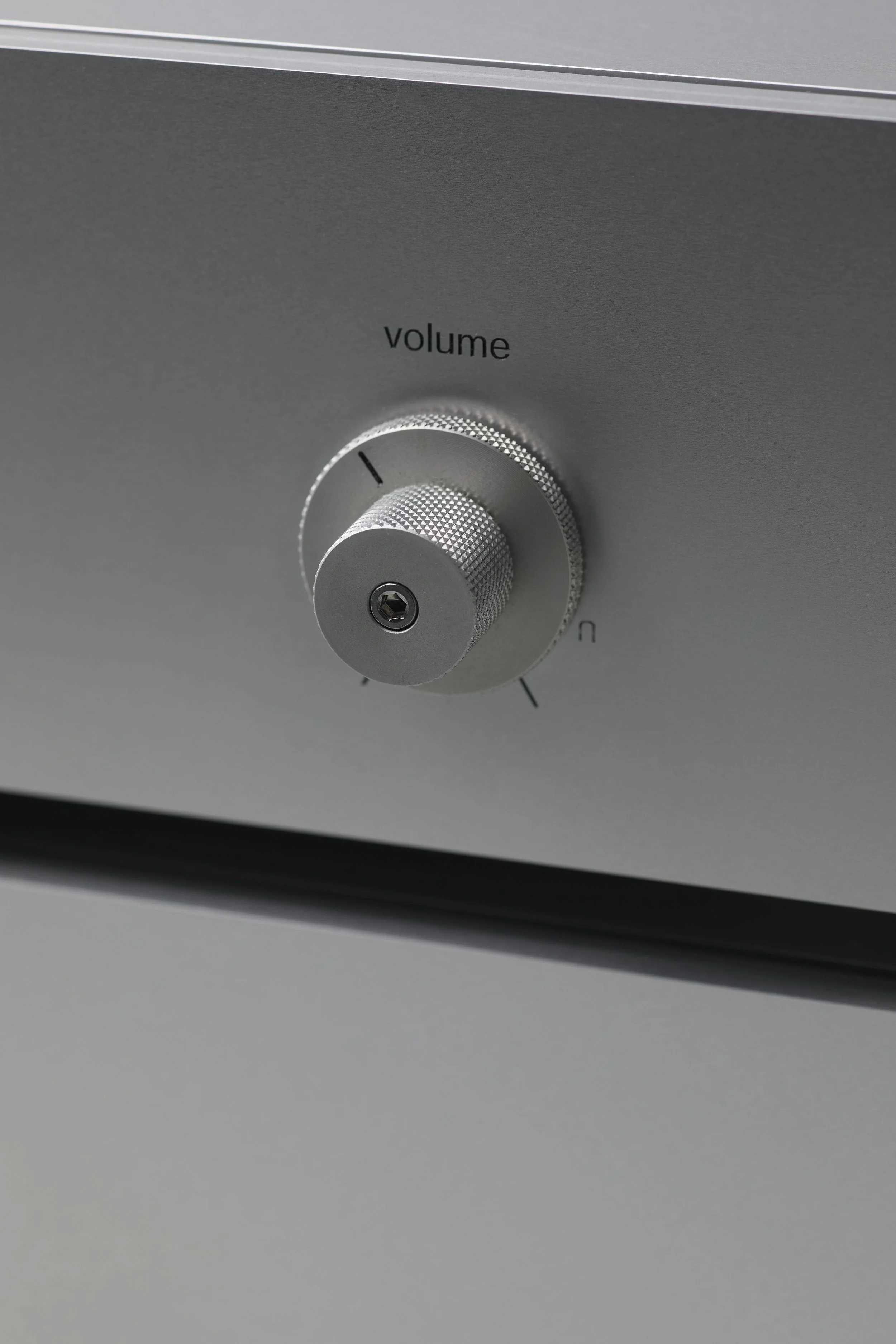

Remote volume control unit

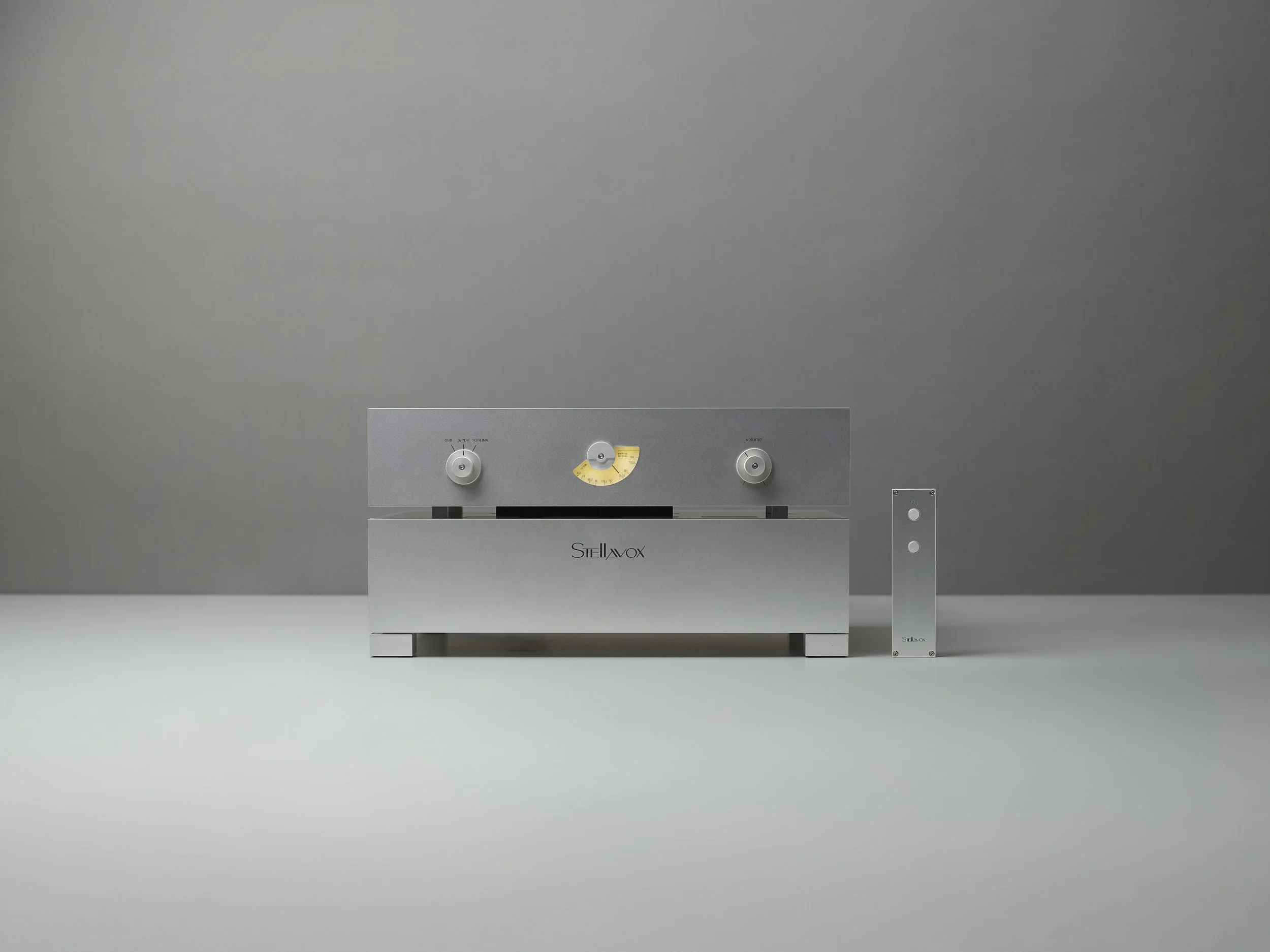

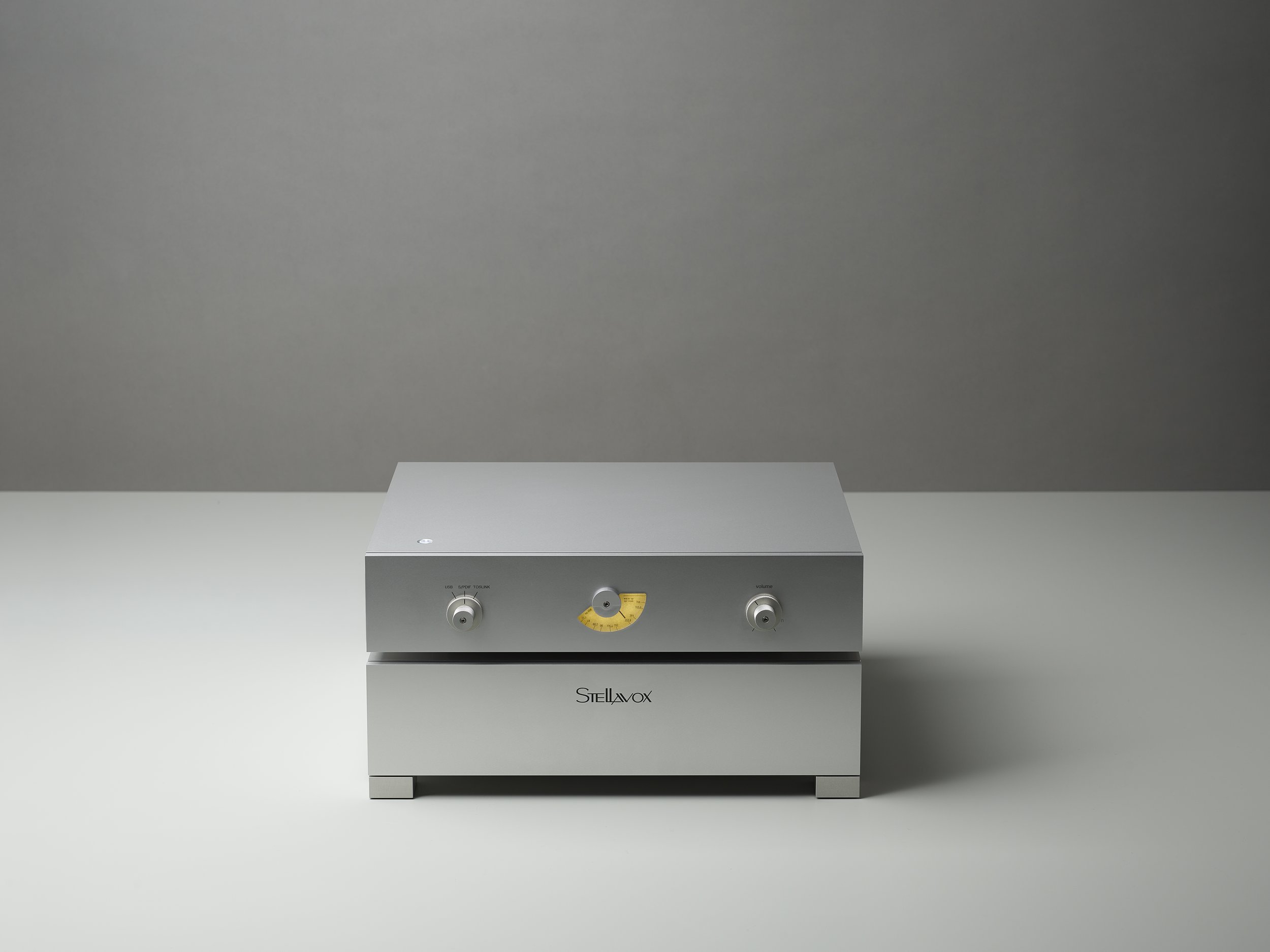

The forthcoming StellaDAC represents Stellavox's interpretation of what a reference digital source should be.

Designed around a fully discrete, balanced R2R ladder architecture, it rejects many of the conventions found in modern DAC design in favour of simplicity, precision and signal integrity.

Rather than relying on digital processing or complex filtering, the StellaDAC follows a purist philosophy.

Galvanic isolation, ultra-low phase noise clocking and separate inductive power supplies for the analogue and digital stages work together to preserve the integrity of the original signal, while the absence of digital and analogue filters allows music to emerge with remarkable naturalness and coherence.

A fully discrete Stellavox analogue output stage provides both balanced output and a direct signal path, allowing the listener to choose between the uncompromised DAC output or the integrated analogue volume control.

Every aspect of the design reflects Stellavox's commitment to reducing noise, preserving timing accuracy and delivering music with exceptional realism.

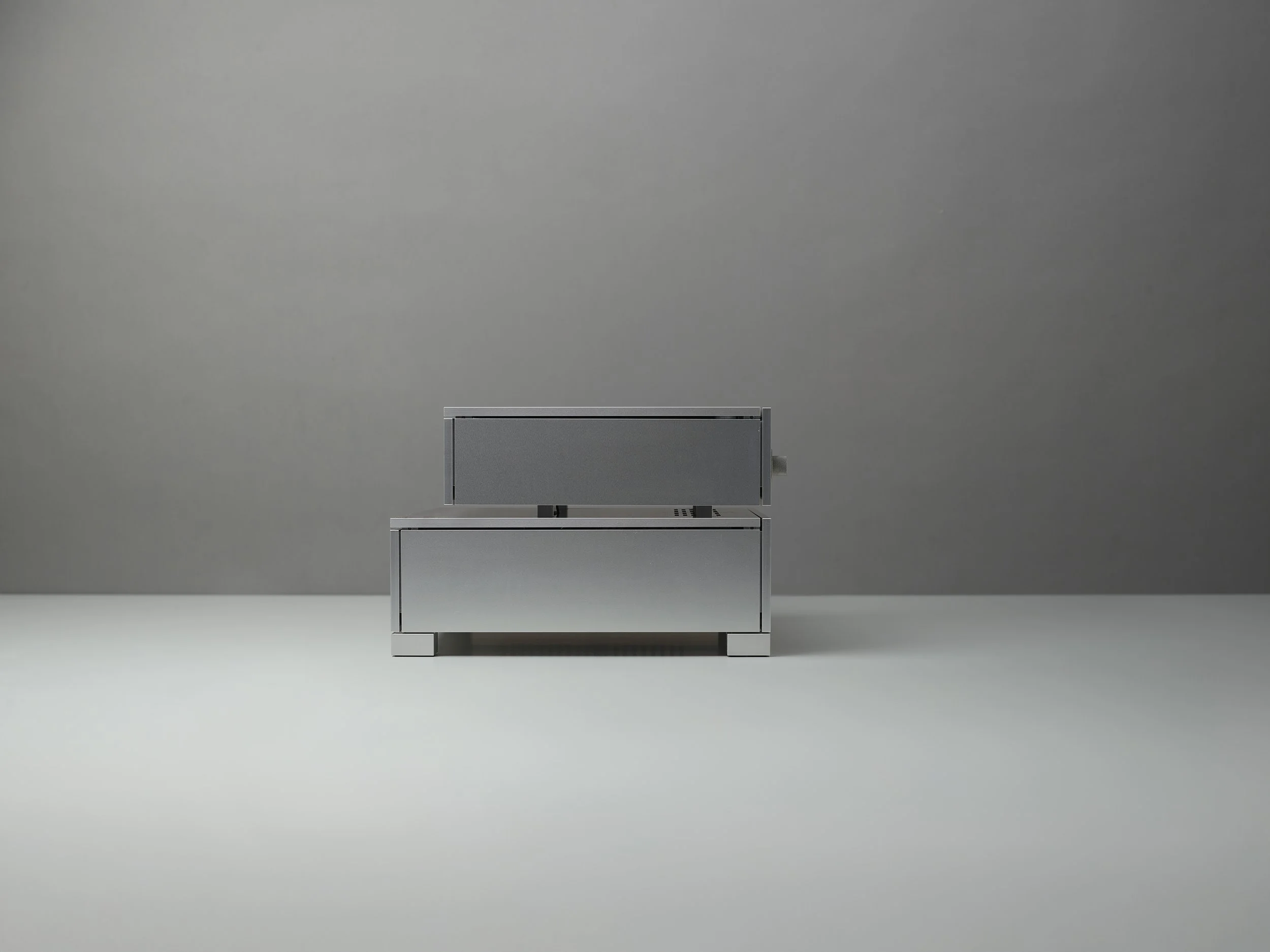

Housed within separate anti-resonant aluminium enclosures for the power supply and converter, the StellaDAC is engineered without compromise.

From its precision discrete R2R converter and ultra-low phase noise oscillators to its beautifully executed analogue frequency meter, every detail has been considered in pursuit of a more natural and engaging musical experience.

The StellaDAC will be available for demonstration at the Pura Sound showroom upon release.

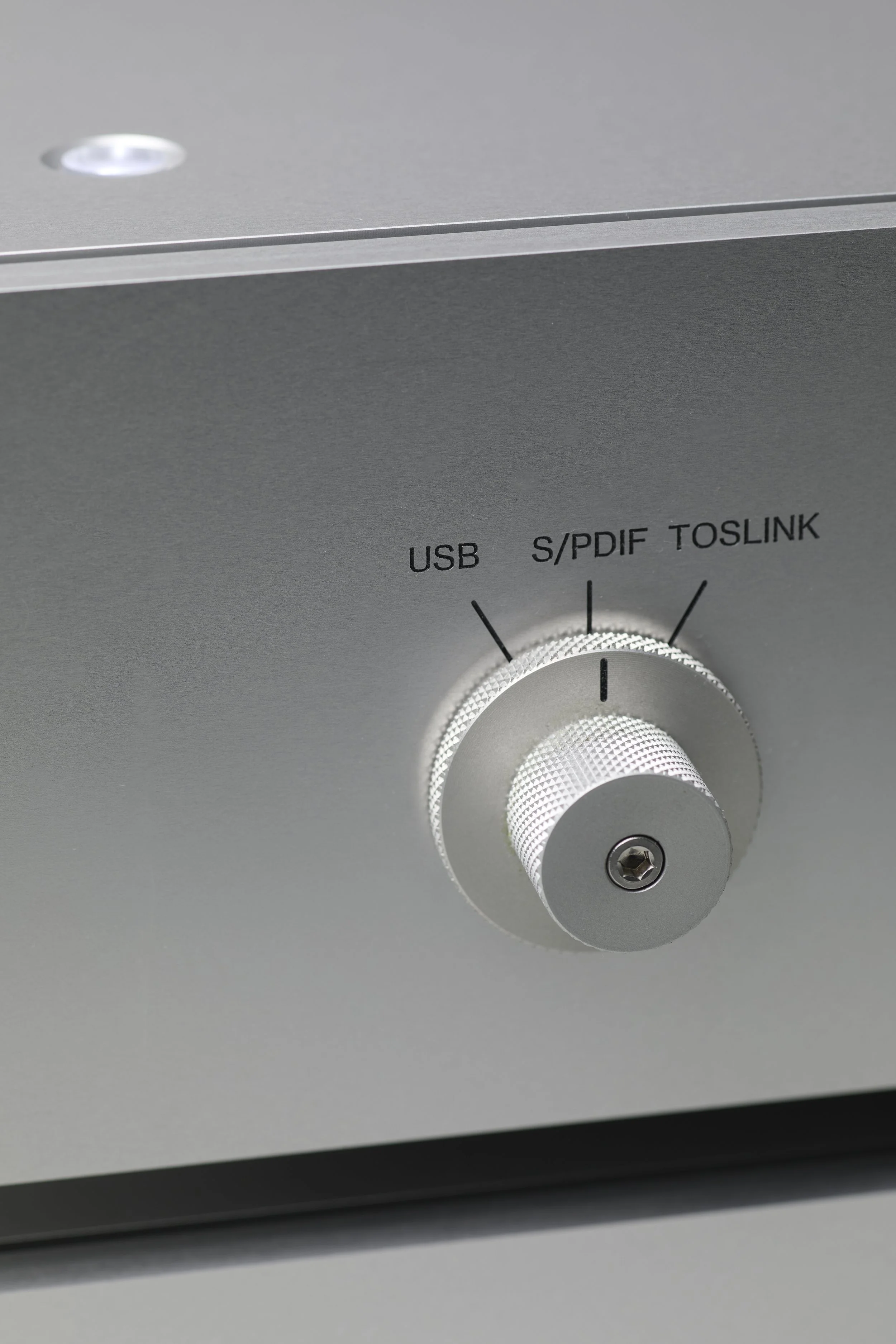

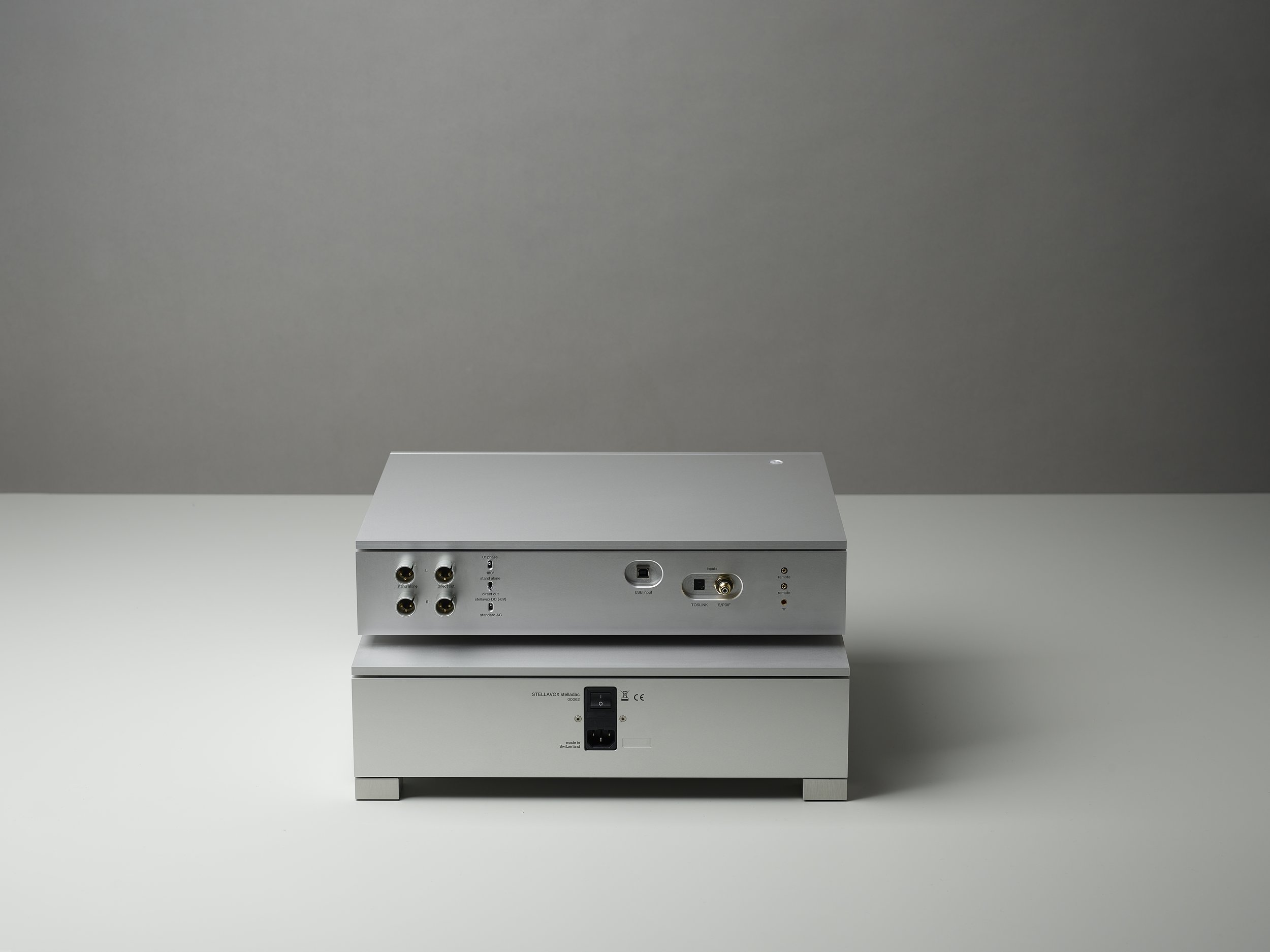

DIGITAL INPUTS:

USB Audio Class 2 with Type B connector to I2S

PCM 16/24 bit – 44.1 / 768kHz

RCA COAX (S/PDIF) 75 ohm - PCM 16/24 bit – 44.1 / 192kHz (ex. 176.4kHz)

OPTICAL TOSLINK - PCM 16/24 bit – 44.1 / 192kHz (ex. 176.4kHz)
